Factory-assembled with all components:

1. Housing (volute & cover)
2. Impeller
3. Seal

About Frame Size: Through-bolt spacing on a 48 frame motor will be less than 4 inches. A 56 frame motor's bolts will be spaced more than 4 inches apart.

How to Determine Spa Pump Plumbing Size

Pump plumbing sizes are nominal, and not actual outside diameter (OD) of the threaded intake or discharge. Use a tape measure and check your old pump thread size against this sizing table for most* spa pump brands:

Plumbing Size		Pump Thread O.D. (approx.)
1.5"		2-3/8"
2.0"		3"
2.5"		3-5/8"

Some brands of hot tub spa pumps (such as Hayward, Jacuzzi, and Sta-Rite) use non-standard fittings with different dimensions. Please contact our Parts Help desk if you need assistance with these.

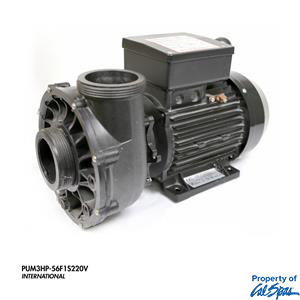

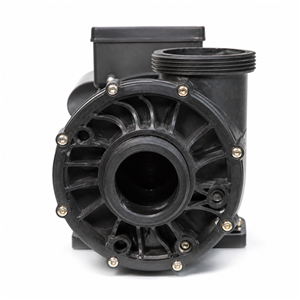

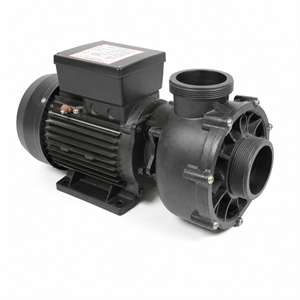

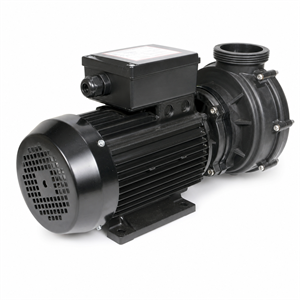

PUM22000577 Pump 1/15HP, 60HZ. 115V, 48 FRAME Price: $240.15		PLU21800340 O-Ring 805-0145 Price: $3.00		PLU21000370 Coupling 2" Price: $3.00		PLU21000710 Pump Union 90 DEG 2" S X S Price: $3.00
